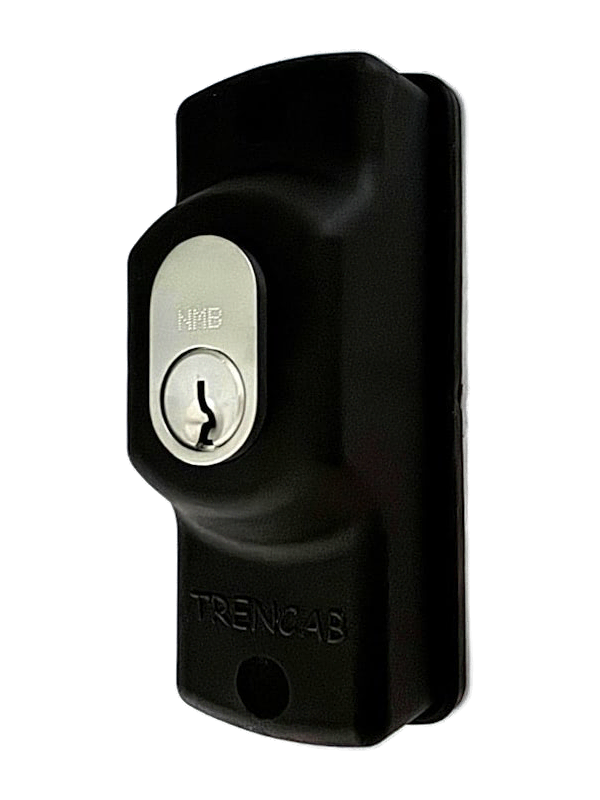

NMB Trencab T1 key switch momentary spring return or on/off key switch
$133.00
Skip to product information
NMB Trencab T1 key switch momentary spring return or on/off key switch
$133.00
The Trencab key switch is a versatile easy to install unit that suits many applications.
It is supplied as a spring loaded momentary function with the option to be changed to on/off with the cams provided.
Made from glass filled nylon for strength and IP67 rated it is ideal for external applications. NMB KEYED 570 cylinder supplied with 2 x Customer keys.
Australian Made and Owned.
Specifications
- On/off and spring return momentary key switch.
- 12 to 48V DC
- Suitable for indoor and outdoor applications.
- Dimensions 117 (L) x 42.5 (D) x 47 mm (W).
- Uses 570 cylinder keyed to NMB and is supplied with 2 x customer keys.
- Rubber gasket standard.
- IP67 rated.
- 500 mm wiring leads attached.
- Body and cams made from tough glass filled nylon (black).
- On/off application cams provided.
- Supplied with 2 x stainless steel Torx security screws.
- Supplied with 2 x Phillips CSK zinc self tappers.
- Supplied with Snap in Screw Cover Caps.
Documents
